Champward CW-364
PS System
Structural Spray |
| |

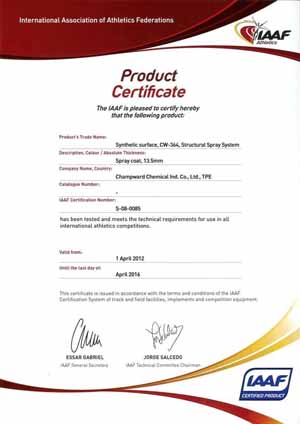

The
performance specifications of the System is accredited with
the IAAF Certified Product
for track surface. |
| |
|
S-08-0085 |
| |
Synthetic Surface of Champward CW-364 PS System |
| |

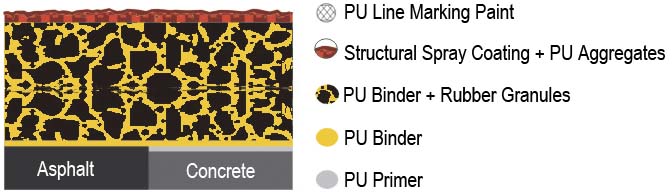

Schematic
Sections: |
| |
 |
| |
Descriptions: |
| |
This
System use one-component moisture-curing PU binder to mix
with rubber crumbs and |
| |
spread by
paving machine. After cure, athletic track finish
coatings which containing fine |
| |
PU
aggregates are sprayed by a suitable spray machine.
This System is porous and |
| |
substantially
cost saving although less durable in use. When
well-installed and properly |
| |
maintained,
the product life can be expected more than 5 years.
The performance |
| |
specifications
of the System is tested by IAAF certified laboratory and
accredited with the |
| |
IAAF
Certified Product for track surface. |
| |
|
| |
|
| |
Need
further information like "Materials Calculation Sheet" or "Installation
Procedure", |
| |
Please
contact us! |
| |
|
